Whale Wave Series

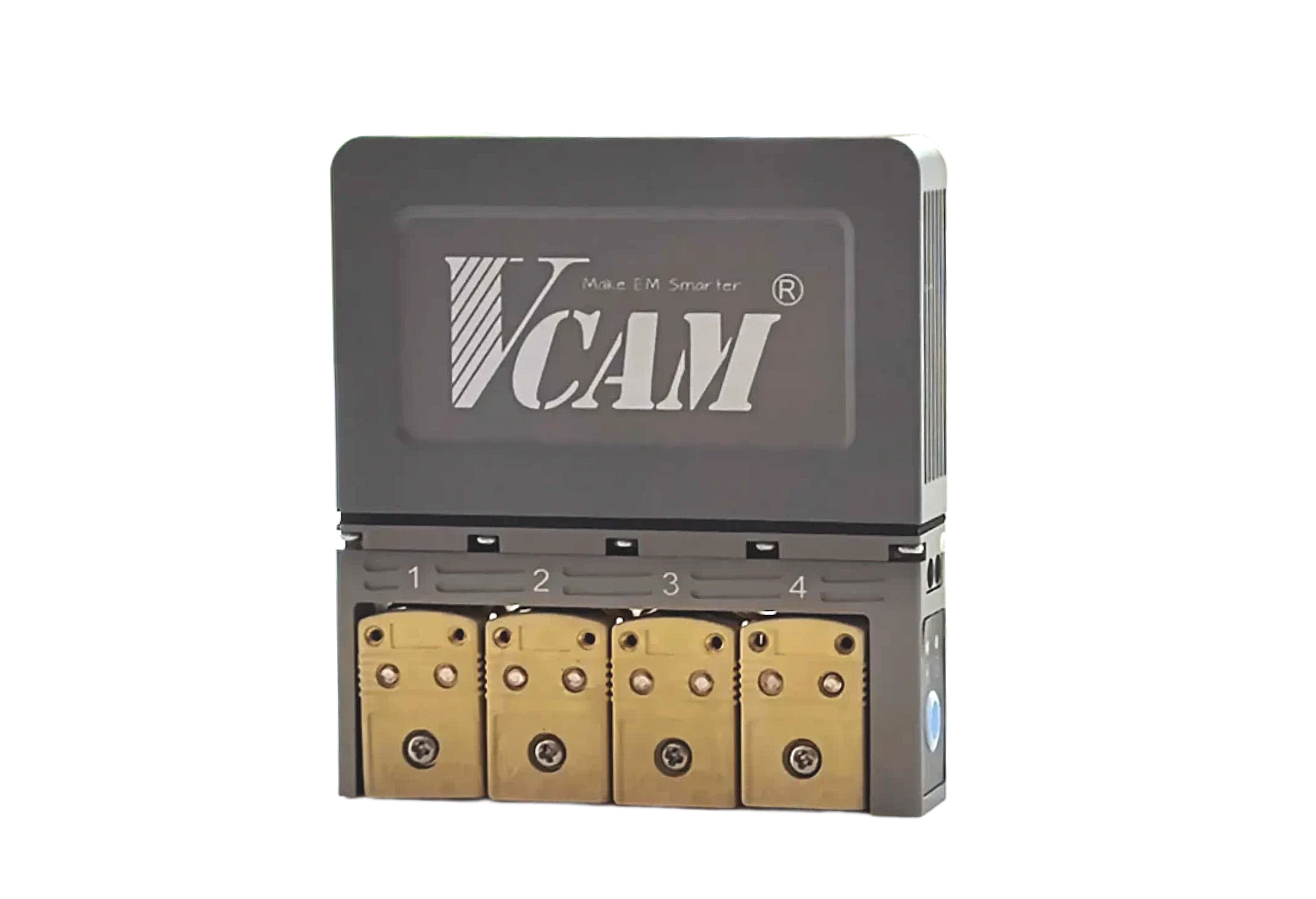

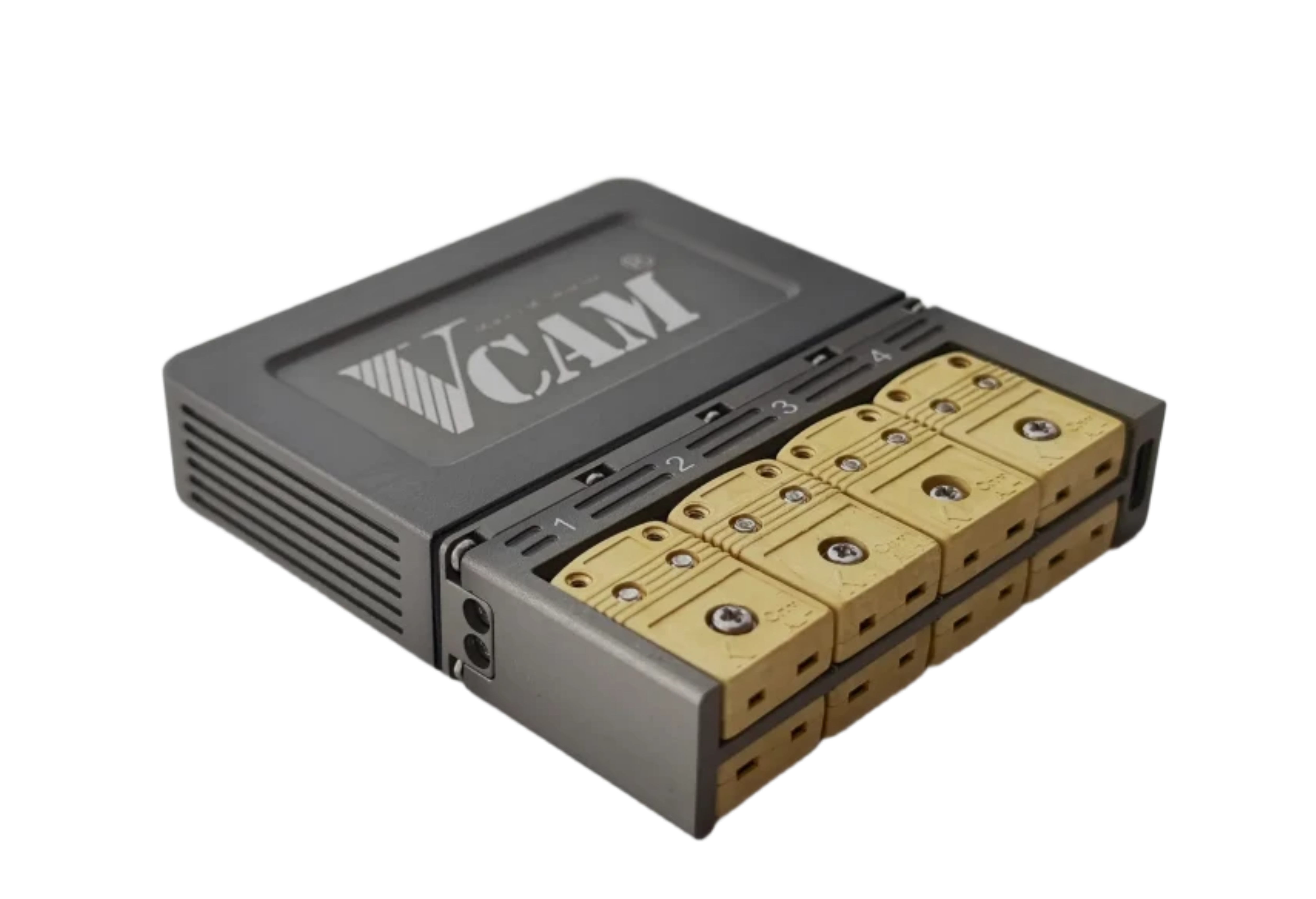

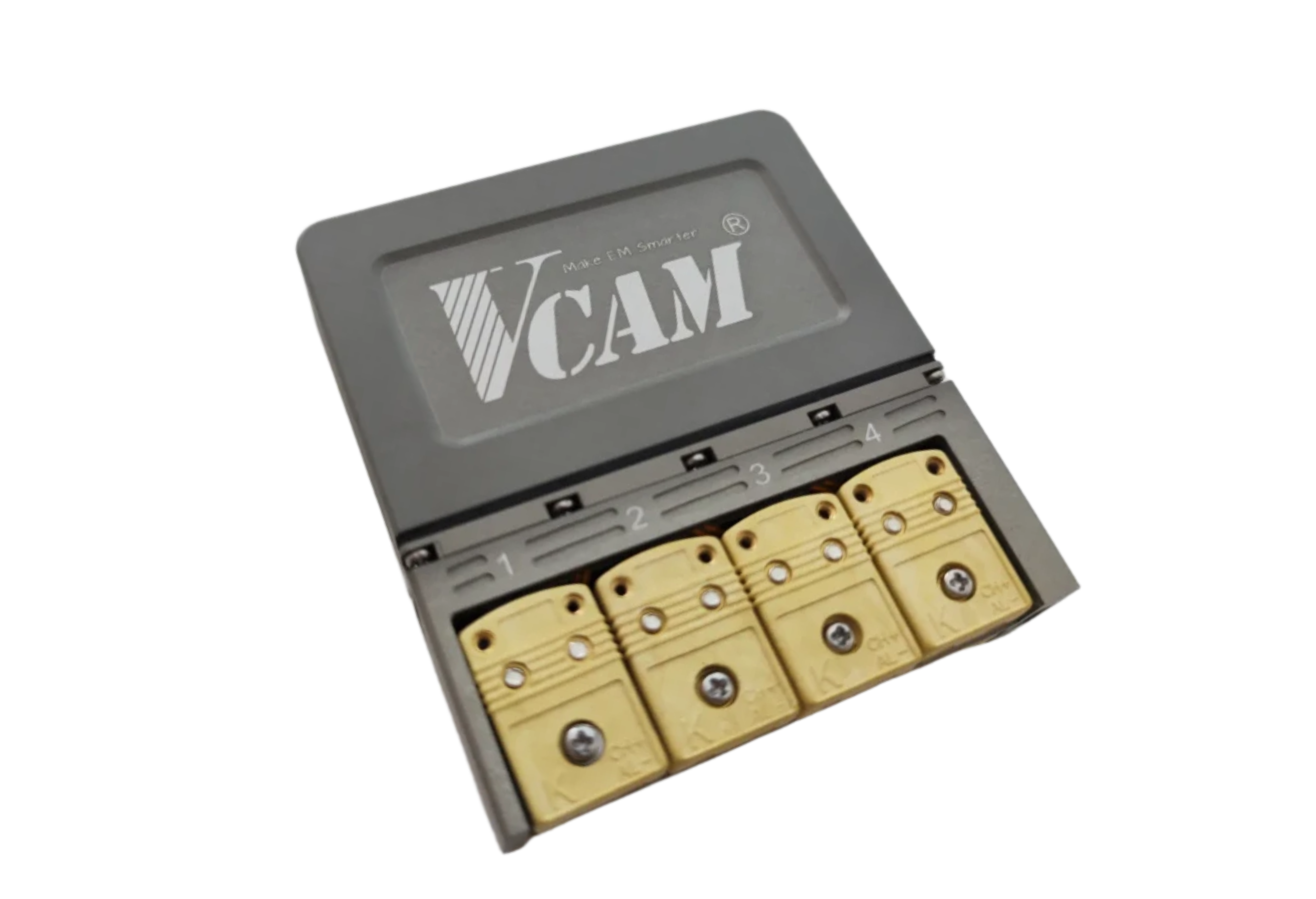

Vacuum Wireless Profiler
The industrial-grade temperature measurement system designed specifically for vacuum furnaces and high-temperature processes uses digital technology to quickly collect and analyze temperature curves of components in multiple locations. It supports wireless transmission, breakpoint resumption, and high-precision data collection, ensuring a safe and efficient test process and reducing manual reliance.
-
Product Value
-
Core functions
-
Applicable scenarios
-
Product parameters
-
Related materials
Product Value
Vacuum environment enhancement
Anti-interference design, adaptable to high temperature and high pressure extreme working conditions.
Improved efficiency
Wireless transmission + breakpoint resume technology shortens the test cycle and reduces downtime.
Accurate and reliable
Vacuum-tight design + high-precision sensor ensures data accuracy in extreme environments.
Risk Control
Real-time monitoring and SPC analysis prevent process deviations and reduce the risk of rework.
Core functions

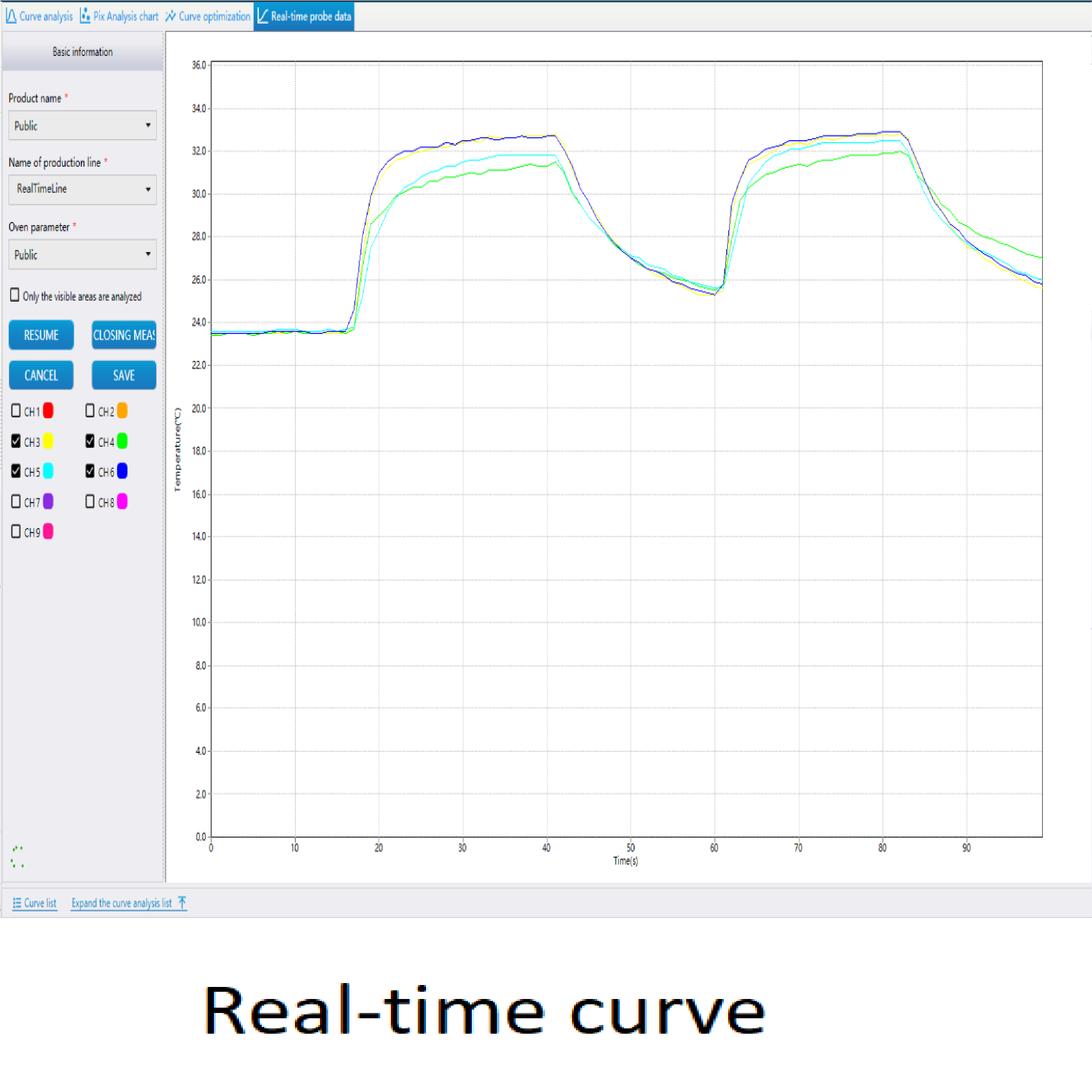

Real-time curve monitoring: multi-channel synchronous acquisition to display furnace temperature changes.

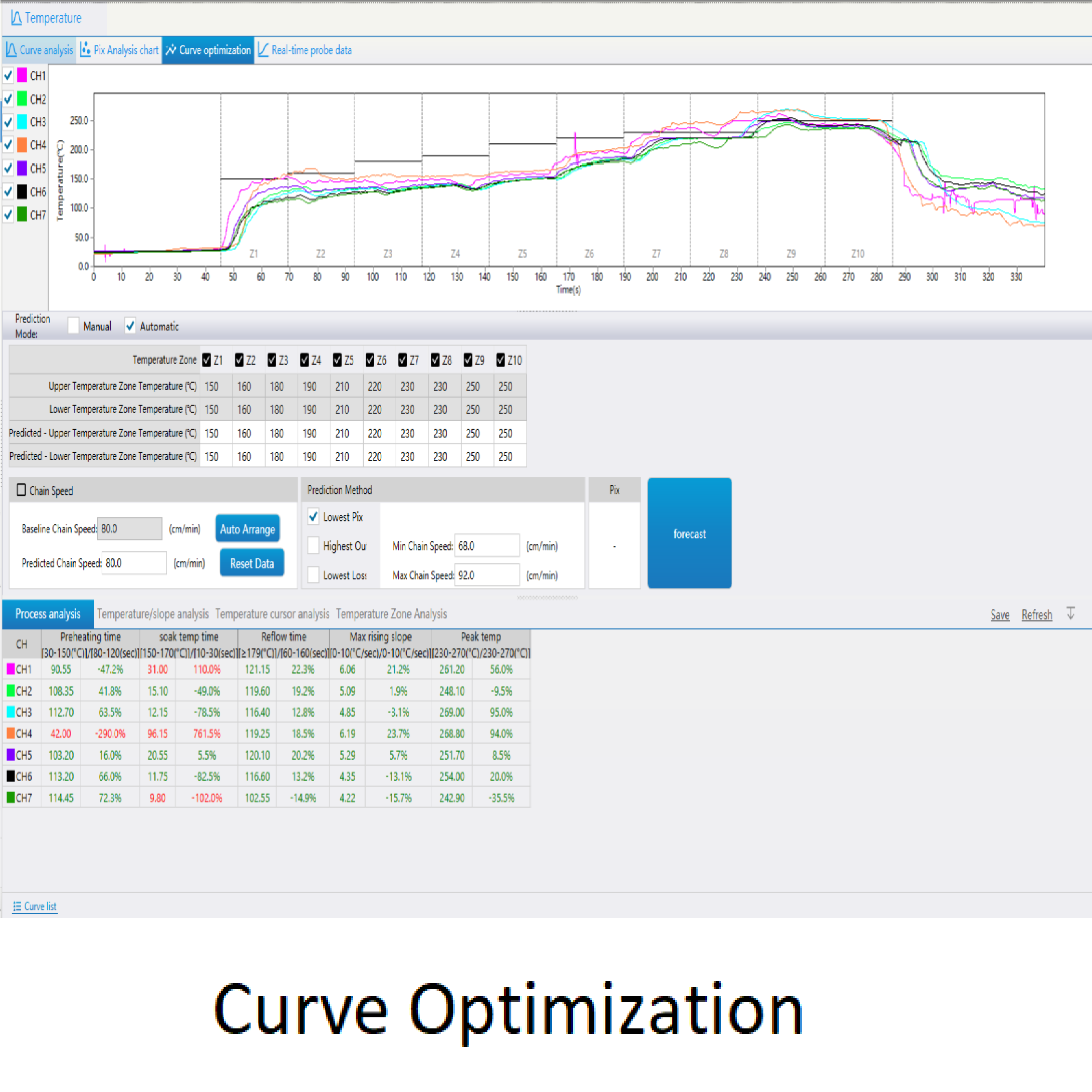

Intelligent curve optimization: automatically recommend parameter adjustment solutions.
Virtual curve simulation: simulate temperature curve and predict process effect.
Standard process analysis: Compare actual curves with industry standards.

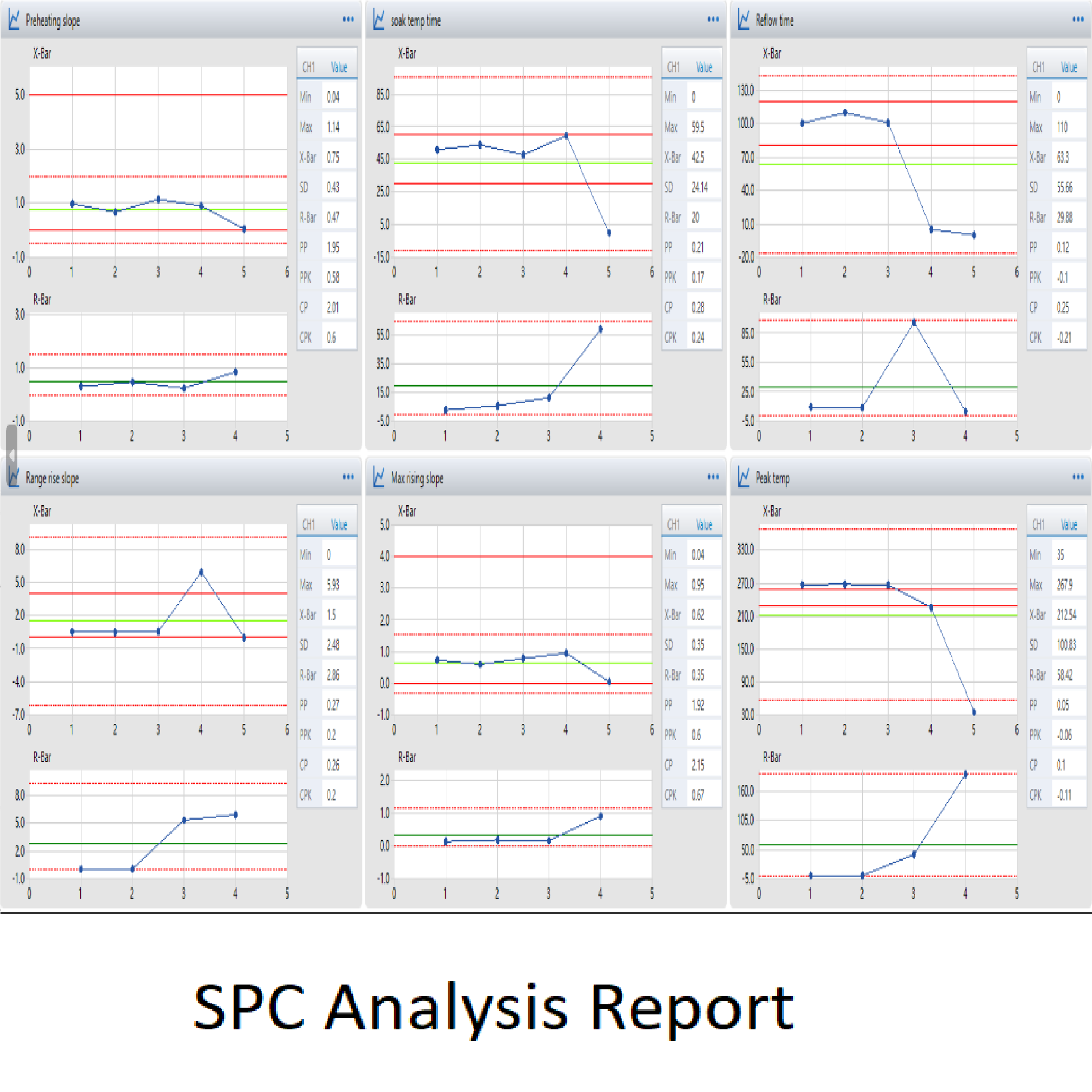

SPC statistical process control: Generate key indicators to assist quality decision-making.

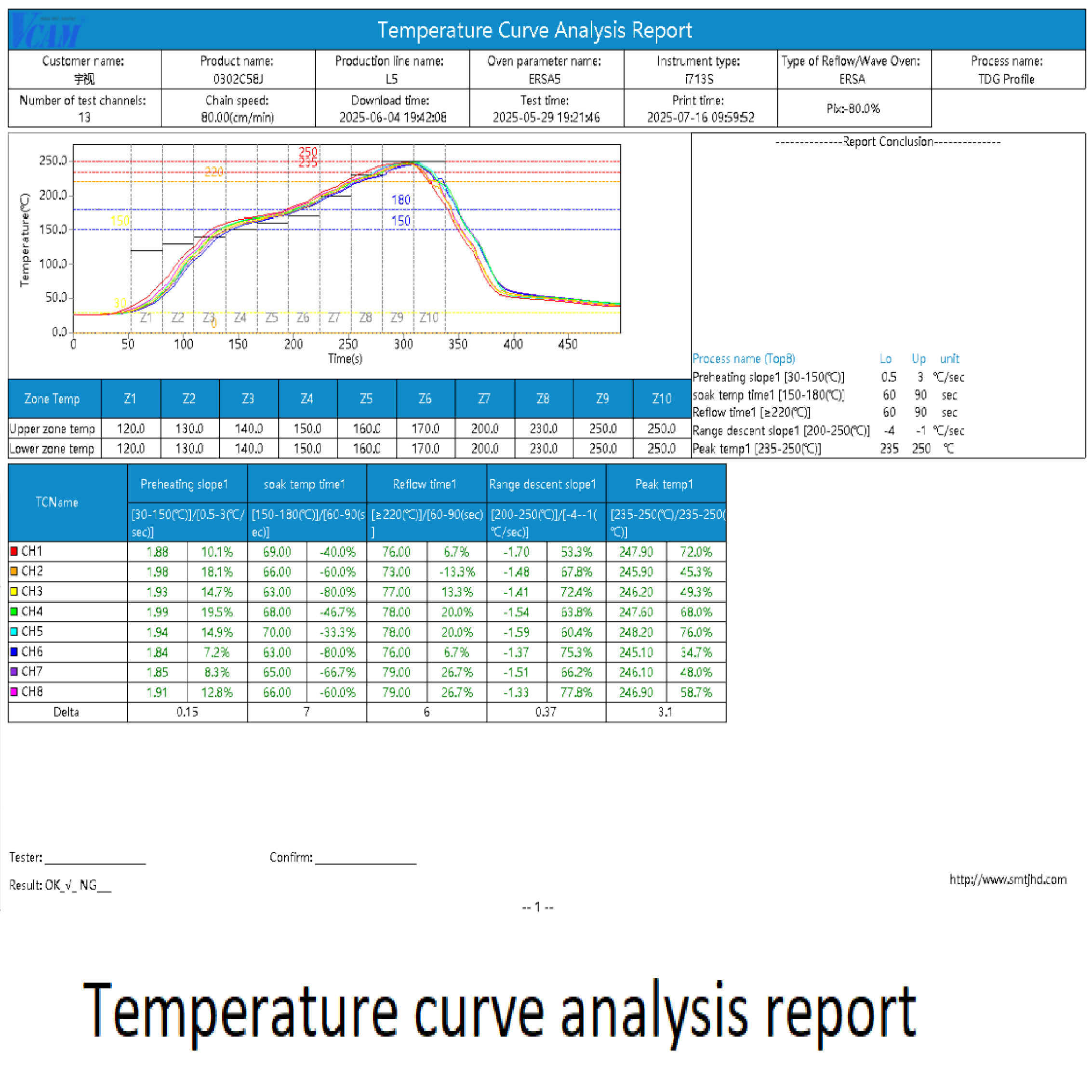

One-click report generation: custom templates, export to PDF/Excel.
Applicable scenarios
Soldering process: global temperature monitoring.
Complex environment: temperature curve collection.
Process optimization: parameter calibration and verification.
Quality control: real-time SPC analysis.
Product parameters
| Model | Iprofile Vacuum |
| Number of channels | 8 |
| Profiler size | L146×W61×H19 mm |
| Corresponding insulation box size | L345×W114×H35 mm |
| Probe Type | K-Type |
| Acquisition rate | 0.1~ 30 s |
| Data Transfer | USB |
| Continuous testing | Can test multiple times, store up to 30 data |
| Startup method | Button start, delay start, temperature start |
| Instrument temperature resistance | 0-85℃ |
| Operating voltage | DC5V1A |
| Instrument accuracy | ±0.5 ℃ |
| Resolution | 0.1 ℃ |
| Measuring range | 0~750℃ |
| Stop method | Button stop, temperature stop |
| Memory capacity | 86400 Point |
| Insulation box material | Stainless steel insulation sleeve |
| Operating system | Microsoft Windows 7 (32-bit or 64-bit) or above/Dual-core 1GHz processor PC/4G memory/40G hard disk storage/1280*1024 video resolution 16-bit/1 available USB port (for data download) |
Related materials
3rd Generation Vacuum Oven Profiler
Professional thermal engineering monitoring solutions make temperature control simple and efficient
Contact us to let our solutions help you
