Profiler
Mini Series Profiler

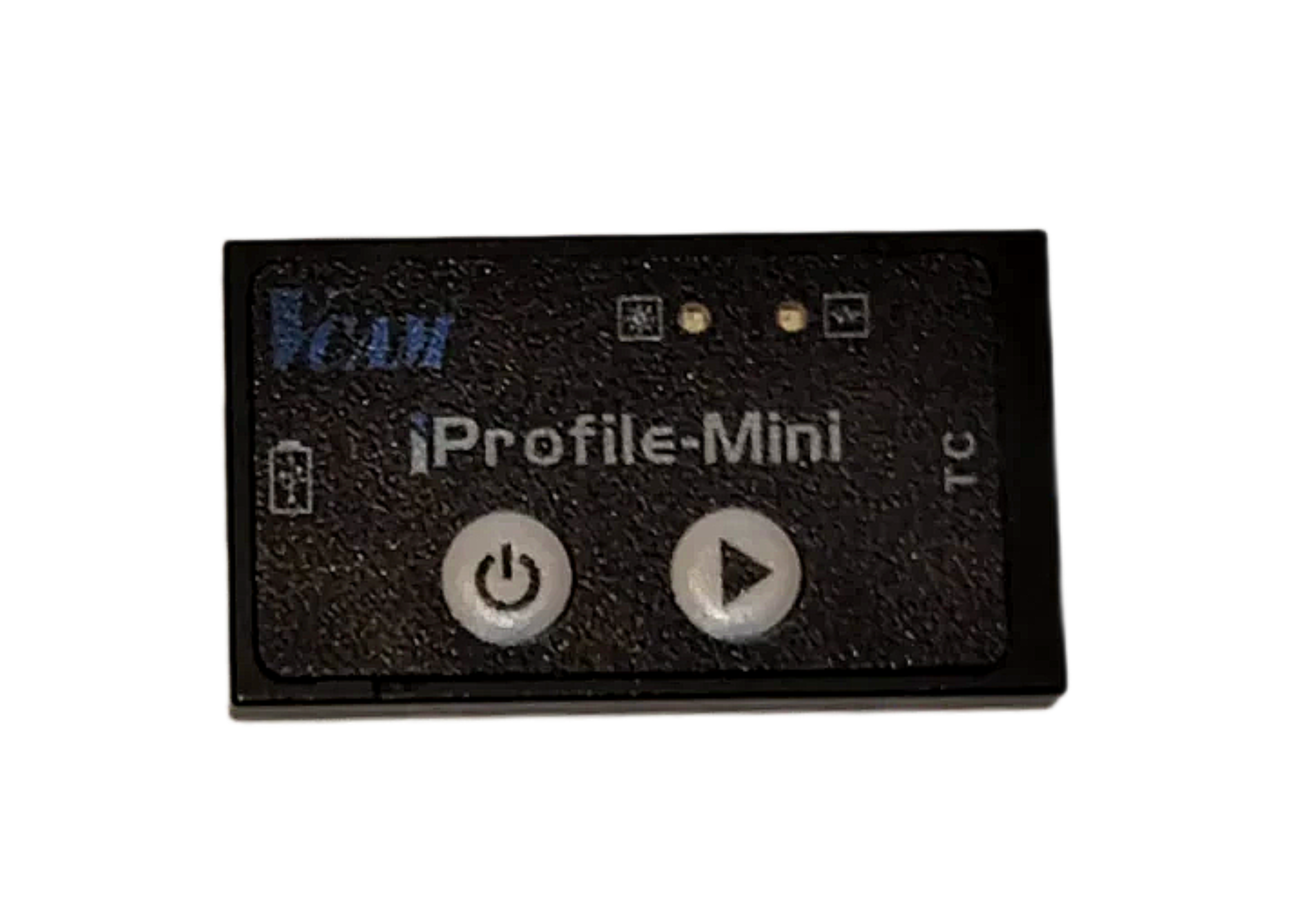

Profile-mini series vertical oven/small space oven profiler is a compact, high-precision, powerful temperature testing equipment. It has high-precision data acquisition capabilities and is suitable for 6-channel temperature measurement, providing users with efficient and reliable temperature monitoring solutions
-
Product Value
-
Core functions
-
Applicable scenarios
-
Product parameters
-
Related materials
-
Recommended products
Product Value
Save space
Compact design, suitable for small space stove environment
Efficient and accurate
High-precision data acquisition ensures accurate temperature measurement
Reduce costs
Wireless transmission and breakpoint resume function to reduce data loss and repeated measurements
Enhance competitiveness
Support SPC analysis and CPK calculation to help optimize production processes and improve product yield
Core functions

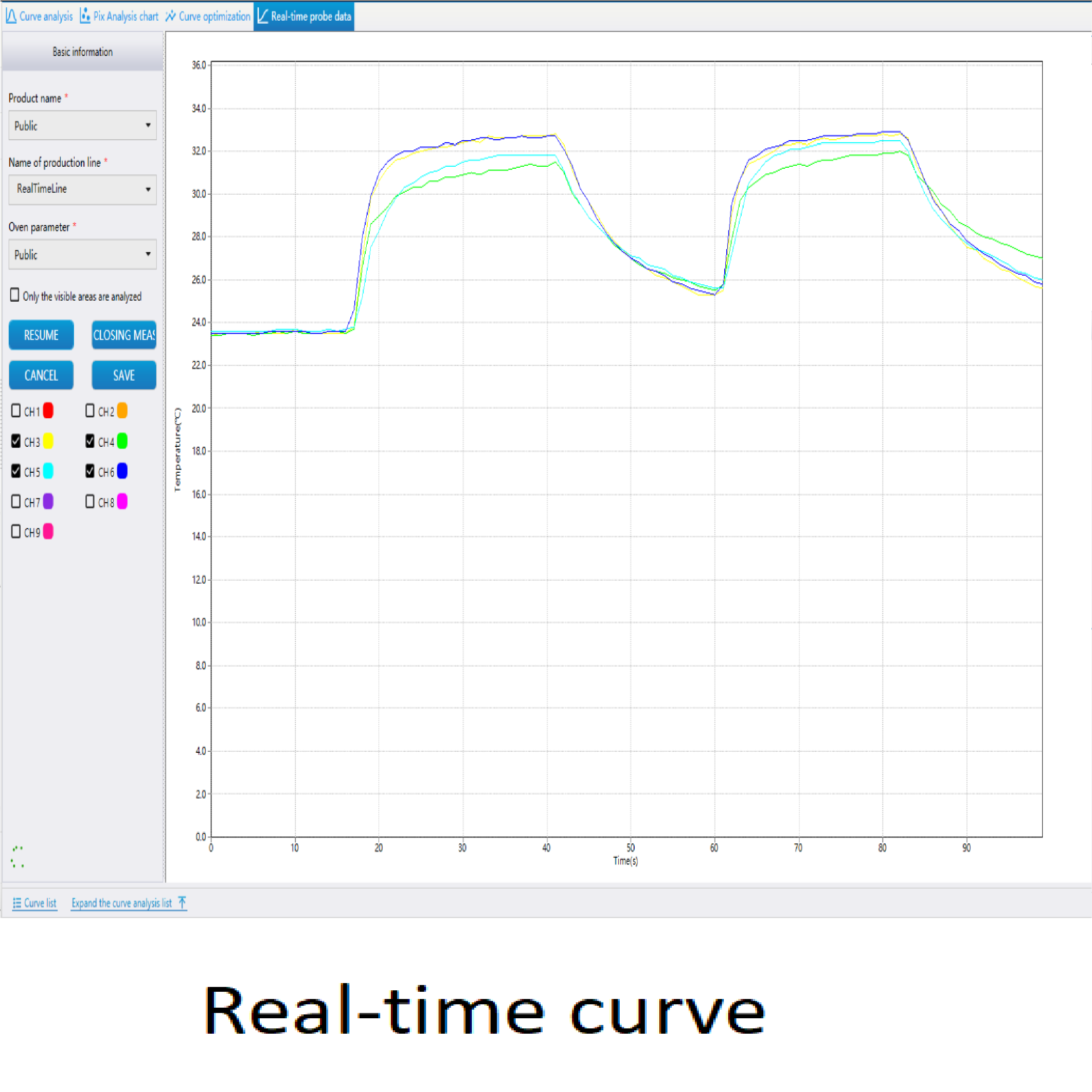

Real-time data monitoring

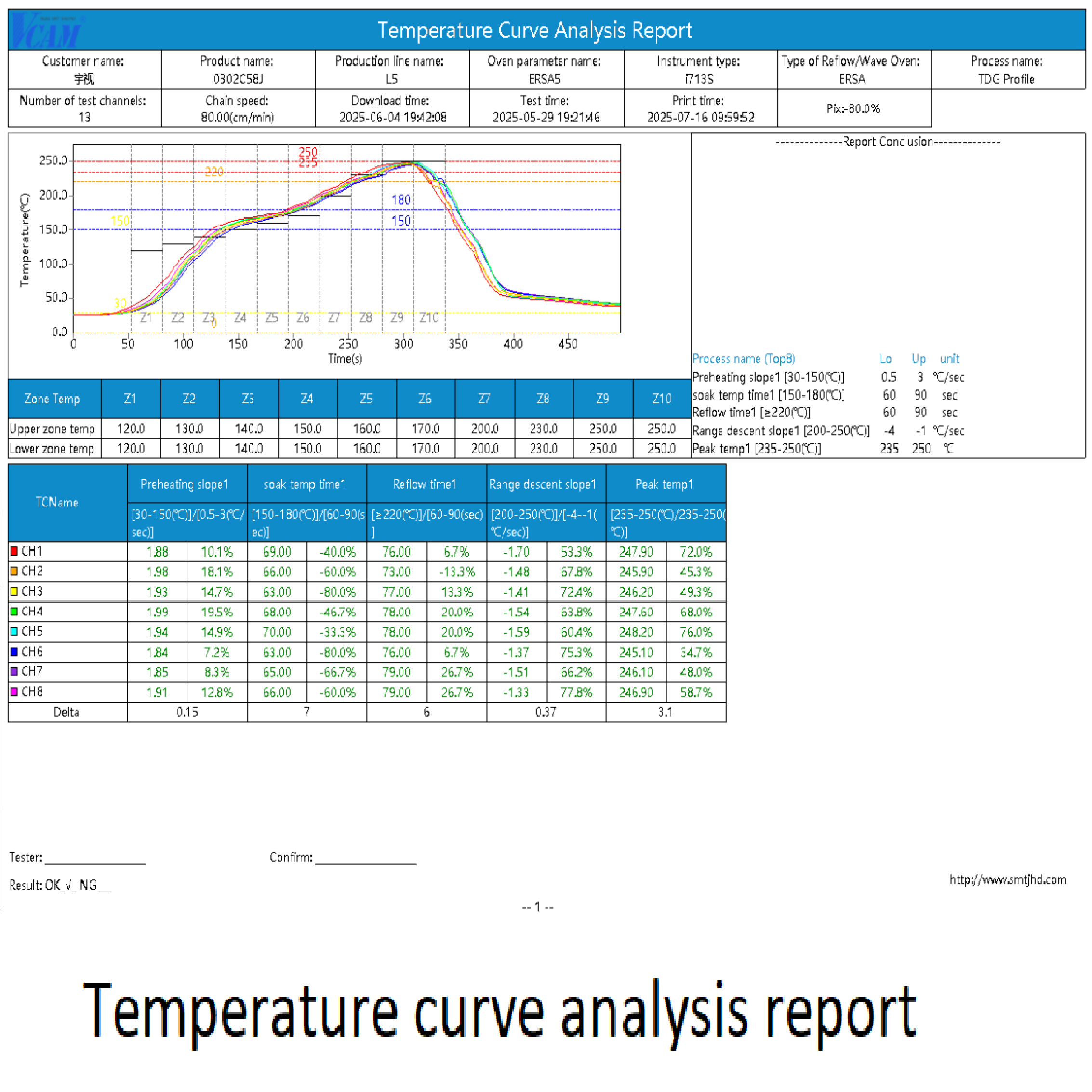

Process window analysis

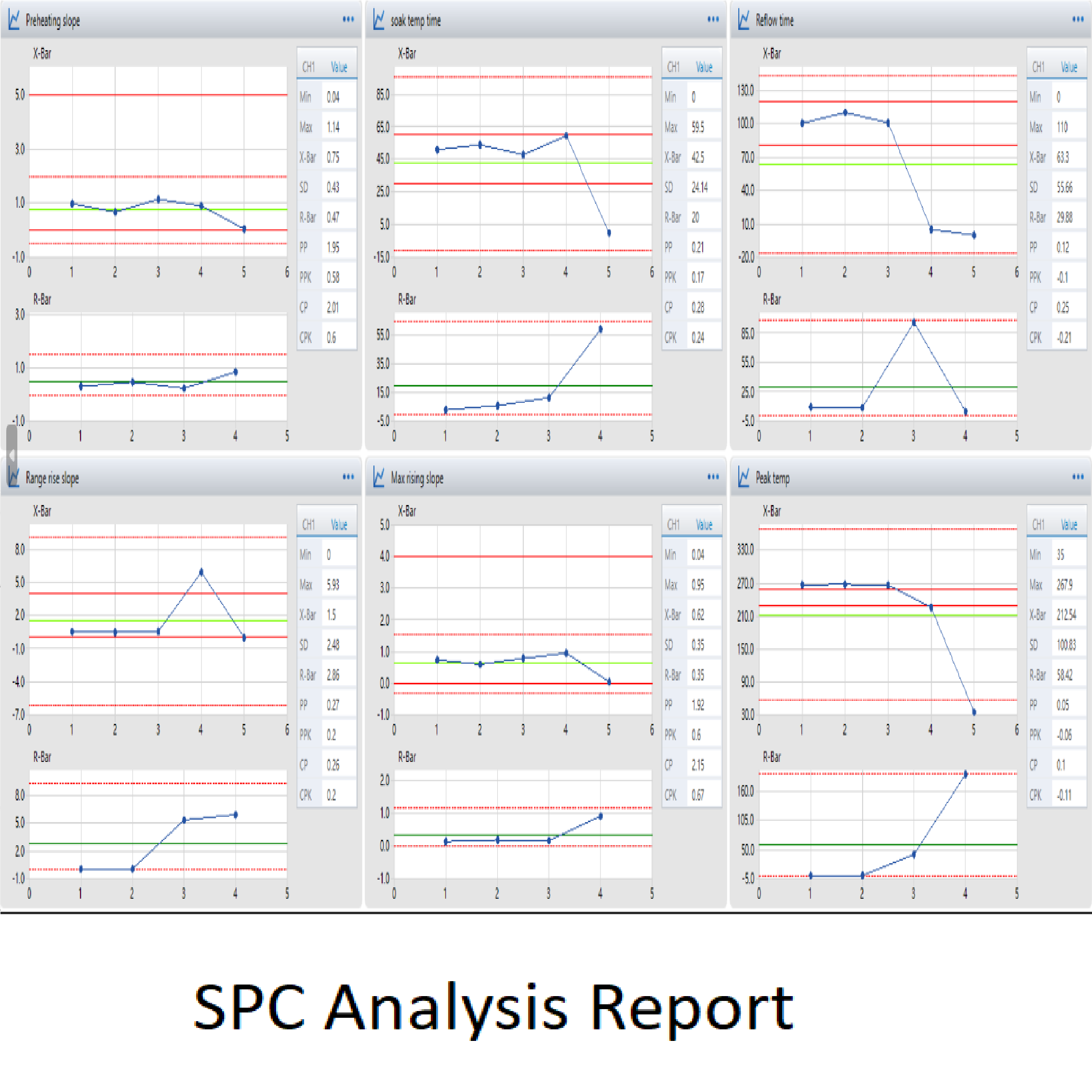

SPC and CPK calculation
Automatic storage
Data Export
Applicable scenarios
Vertical Oven Temperature Monitoring
Reflow Oven Temperature Test
Curing Oven Temperature Analysis
Aging room temperature record
High temperature experimental environment data collection
Product parameters
| Model | Mini |
| Number of channels | 8 |
| Profiler size | L55×W29×H7.5 mm |
| Corresponding insulation box size | L85×W55×H35 mm |
| Instrument accuracy | ±0.5 ℃ |
| Probe Type | K-Type |
| Acquisition rate | 0.1~ 30s |
| Data transfer | USB data cable download |
| Continuous testing | Can test multiple times, store up to 20 groups, 300 data |
| Startup method | Button start, delay start, temperature start |
| Instrument temperature resistance | 0-85℃ |
| Operating voltage | DC5V1A |
| Resolution | 0.1℃ |
| Measuring range | 0~750℃ |
| Stop method | Button stop, temperature stop |
| Memory capacity | 86400 Point |
| Insulation box material | Stainless steel insulation sleeve |
| Operating system | Microsoft Windows 7 (32-bit or 64-bit) or above / Dual-core 1GHz processor PC / 4GB RAM / 40GB hard drive storage / 1280*1024 video resolution 16-bit / 1 available USB port (for data download) |
Related materials

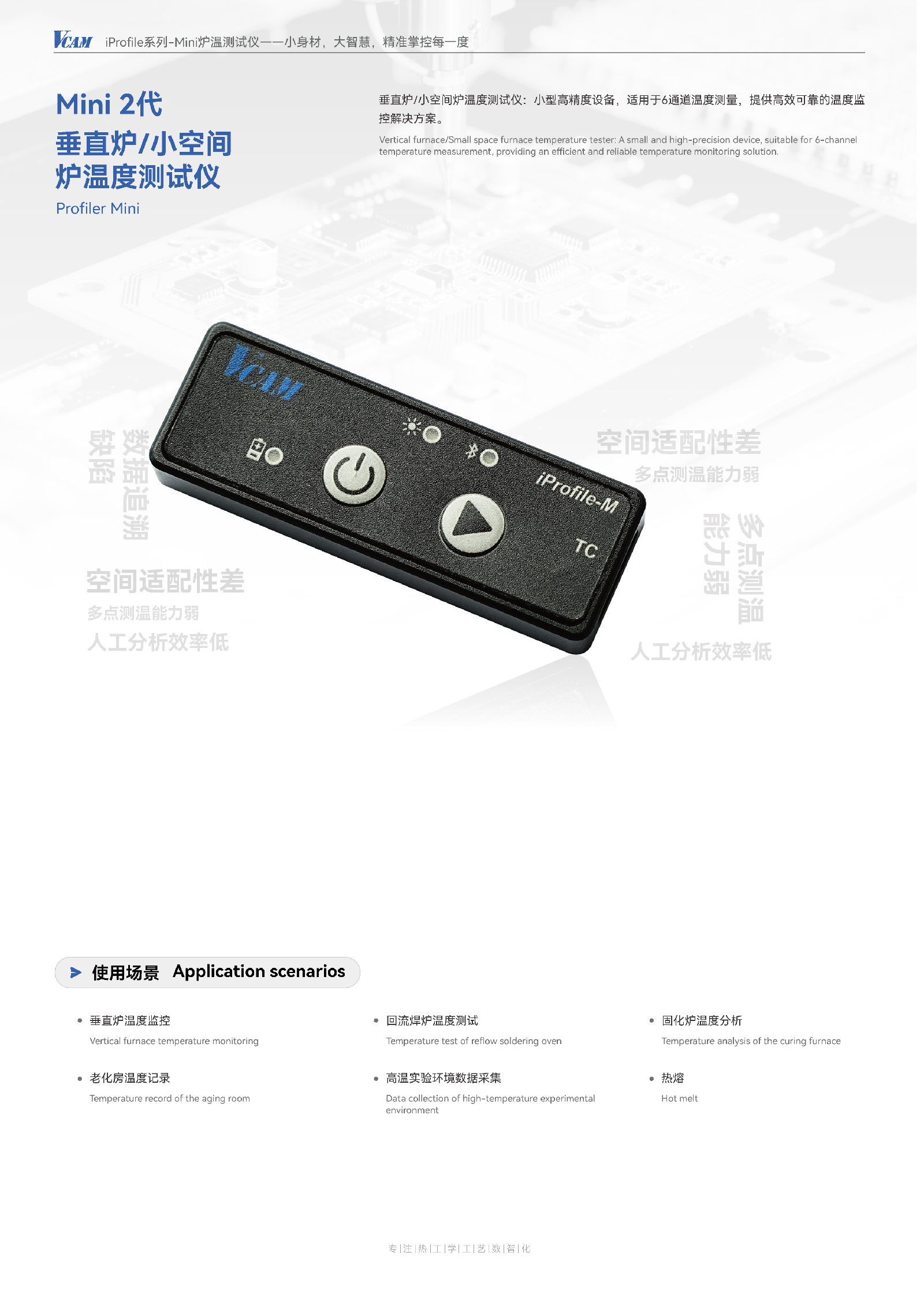

iProfile-mini series vertical oven small space oven profiler
